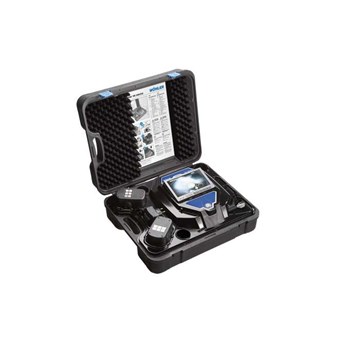

Visual Inspection Wohler Vis-220

Deskripsi : alat untuk memeriksa/ menginspeksi gangguan dalam saluran pipa. Spesifikasi : - Monitor : Size: 165 x 127 x 38 mm TFT-Display: 5.6“ Video-Out: RCA Weight: 400 g Current Supply: 2 x batteries 12 V/ 1, 2 Ah battery life time: 1 hour per battery - Miniature camera head : Sensor type: 1/ 3“ COLOUR CCD Pixel: 768 x 512 Sensitivity: 0.5 Lux Field of view: 120° Light source: 12 white LEDs Protection: watertight according to IP 68 Size: 26 mm x 38 mm Ø Weight: 60 g Work temperature: -10 - 50 ° C, RH 95% MAX Storage temperature: -20 - 60 ° C, RH 95% MAX - Metric marked rod : Length: 20 m Diameter: 6 mm - Heavy duty carrying case : Size: 51 x 43 x 17 cm Weight: 7 kg - Locator ( optional) : Frequency ( transmitter) : 32.768 kHz Frequency ( Modulation) : ca. 32 Hz Current Supply: by VIS 2xx Work temperature: 0… 40 ° C Storage termperature: -10… 40 ° C Weight: 55 g Size: 30 mm x 90 mm Ø Protection: IP 68 - Receiver : Display: fast analog indicator - Outputimpedance : Head set: typ. 8 Ohm Current supply: 9 V battery Work Temperature: 0 up to 40 ° C Storage Temperature: -20 ° C up to 50 ° C Weight: 140 g Size: 130 x 60 x 30 mm • Manual : Bahasa Inggris dan Indonesia • Kartu Garansi
